Photo Gallery

Here is a collection of some of the parts we have machined over the years. Click on the thumbnails below for a larger view of each part.

Actuator
Actuator
Production processes include: copying, grooving, parting, turning
Air adjustment shaft
Air adjustment shaft
Production processes include: turning, threading, milling, key, slotting
Adaptor
Adaptor
Production processes include: OD threading, drilling, boring, OD grooving, OD forming, swiss-type turning, critical tolerances
Adjustment Ring
Adjustment Ring
Production processes include: CNC turning, boring, ID threading, 4th axis milling, drilling, engraving
Adaptor
Adaptor
Production processes include: swiss-type turning, milling, OD threading, drilling, boring, OD grooving, OD forming, critical tolerances
Air Plate Adjustment
Air Plate Adjustment
Production processes include: 4th axis milling, engraving, drilling, tapping, turning, grooving, milling, threading, critical tolerances
Air Plate Adjustment
Air Plate Adjustment
Production processes include: 4th axis milling, engraving, drilling, tapping, turning, grooving, milling, threading, critical tolerances
Air Plate Adjustment
Air Plate Adjustment
Production processes include: 4th axis milling, engraving, drilling, tapping, turning, grooving, milling, threading, critical tolerances
Air Plate
Air Plate
Production processes include: keyway, drilling, broaching, milling, chamfering, slot generation
Annealed Shaft
Annealed Shaft
Production processes include: CNC turning, milling, threading, burnishing, slot milling, critical tolerances, grinding type finishing

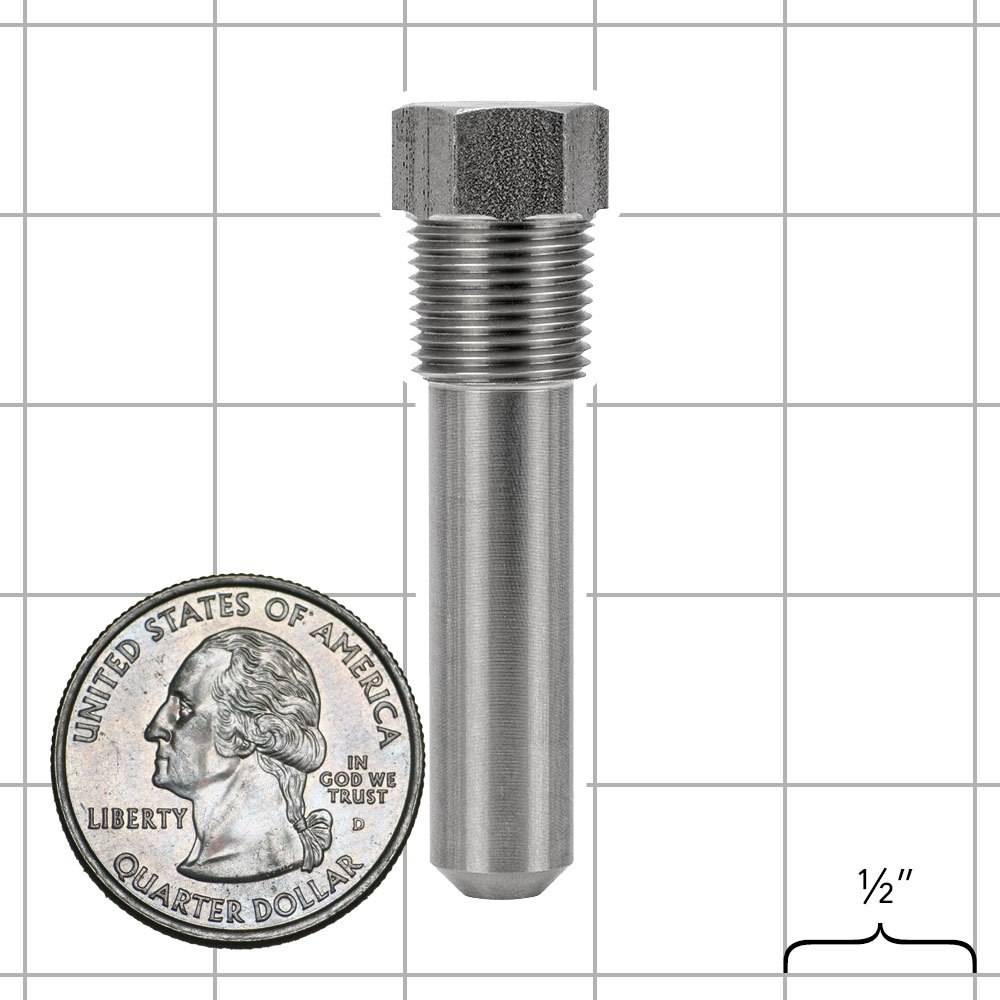

Check Valve Pin
Check Valve Pin
Production processes include: OD turning, OD threading
Clamp
Clamp
Production processes include: CNC Milling, drilling, tapping, threading, engraving, sand blasting
Eccentric Weight
Eccentric Weight
Production processes include: CNC turning, threading, milling, key slotting, gun drilling
Housing
Housing
Production processes include: CNC milling, drilling, boring, tapping, threading, mirror-type finish, milling groove generation, critical tolerances, grinding type finishing
Housing
Housing
Production processes include: CNC milling, drilling, boring, tapping, threading, mirror-type finish, milling groove generation, critical tolerances, grinding type finishing
Housing
Housing
Production processes include: CNC milling, drilling, tapping, 3-D threading, hydraulic porting, engraving, mirror finishing, critical tolerances, grinding type finishing
Housing
Housing
Production processes include: CNC milling, drilling, tapping, 3-D threading, hydraulic porting, engraving, mirror finishing, critical tolerances, grinding type finishing
Lock Ring
Lock Ring
Production processes include: CNC turning, boring, ID threading, 4th axis milling, drilling, engraving, slotting, notching
Manifold
Manifold
Production processes include: CNC milling, drilling, threading, gun drilling, critical tolerances, grinding type finishing
Motor Body
Motor Body
Production processes include: hydraulic motor tolerances, milling, turning, ID grooving, tapping, chamfering, boring, critical tolerances, grinding type finishing
Pedestal
Pedestal
Production processes include: turning, assembly, black oxide anodizing, threading, drilling
Roller
Roller
Production processes include: boring, turning, milling, undercutting, critical tolerances
Seal-Ring
Seal-Ring
Production processes include: CNC turning, boring, ID grooving, OD grooving, CNC drilling, CNC milling, critical tolerances, grinding type finishing
Seal-Ring
Seal-Ring
Production processes include: CNC turning, boring, ID grooving, OD grooving, CNC drilling, CNC milling, critical tolerances, grinding type finishing
Shaft
Shaft
Production processes include: OD turning, OD threading
